Pressing open an outer sleeve seam involves both flattening the seam allowances and following the sleeve curve. KANGYE's outer sleeve-seam press supports the sleeve panel on a shaped mold to press the opened seam allowances along the outer seam. The mold should match the sample garment's outer sleeve outline and seam path, helping prepare the sleeve for subsequent production steps.
KANGYE garment pressing equipment

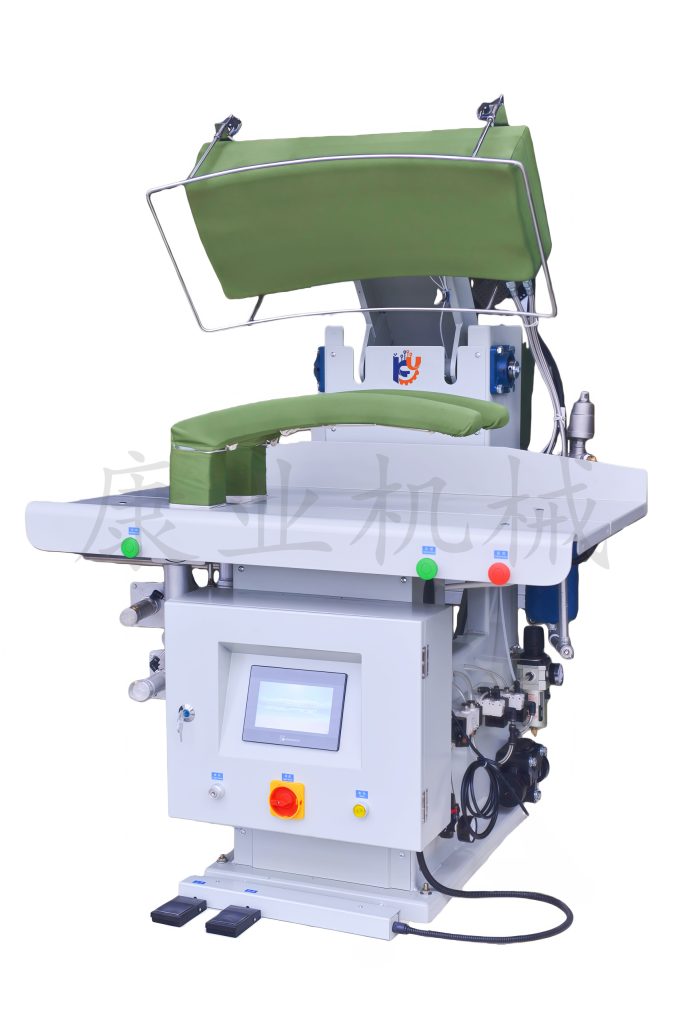

Outer sleeve-seam pressing and setting machine
| Control system | Automatic LED PLC / touch-screen PLC |
|---|---|
| Pressing force (kg, as listed) | 200kg |
| Steam supply / consumption | 0.4-0.6MPa (18kg/h) 1/2" |
| Compressed air supply / consumption | 0.4-0.6MPa (15L/min) 8mm |
| Electrical supply | 220V/1ph/50HZ |
| Condensate outlet | 1/2" |
| Dimensions | 900x1200x1650mm |
| Net weight | 320kg |
Reference values for comparable equipment. Confirm the actual configuration with KANGYE.
Mold and equipment customization support
We support customized mold and equipment solutions based on your sample garments, patterns and production process. Final fit and scope are confirmed through sample trials and technical discussion.
Pressing area
Sleeve seamDiscuss the mold fit
Share your sample garment and pressing requirements. We can review how the mold fits before discussing a custom mold.
