For pressing open the back seat seam of trousers, KANGYE offers a seat-seam press with a mold shaped to support the trouser panel. The machine presses the opened seam allowances in this centre-back seam area. The mold should follow the seam path and trouser pattern, helping prepare the seam for subsequent trouser production steps.
KANGYE garment pressing equipment

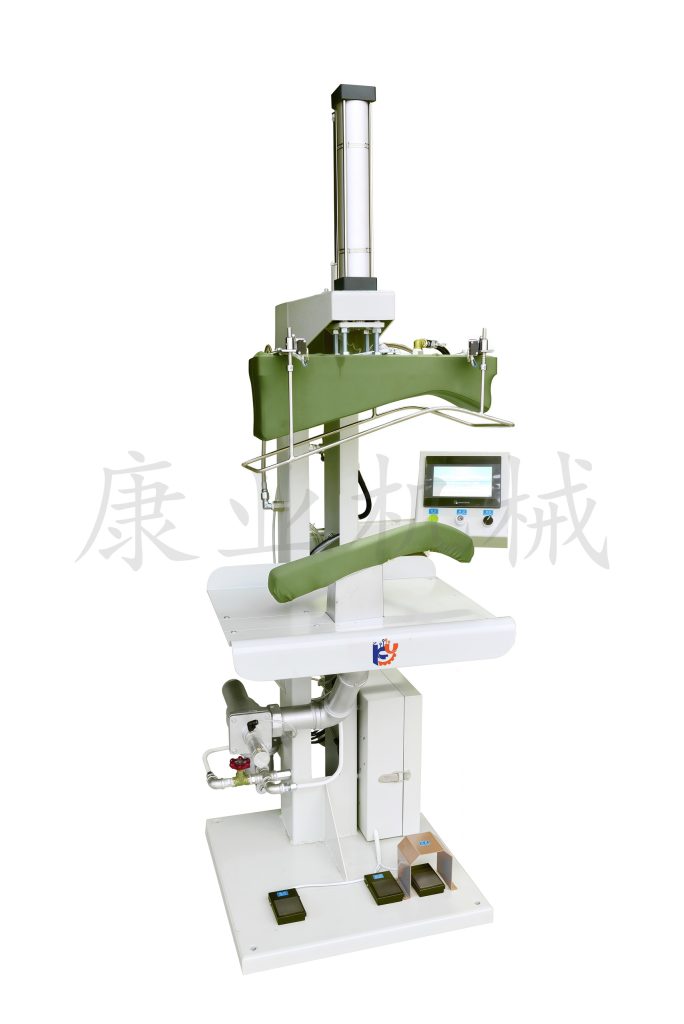

Seat-seam pressing and setting machine
| Control system | Automatic LED PLC / touch-screen PLC |
|---|---|
| Pressing force (kg, as listed) | 200kg |
| Steam supply / consumption | 0.4-0.6MPa (18kg/h) 1/2" |
| Compressed air supply / consumption | 0.4-0.6MPa (15L/min) 8mm |
| Electrical supply | 220V/1ph/50HZ |
| Condensate outlet | 1/2" |
| Dimensions | 900x1200x1300mm |
| Net weight | 320kg |
Reference values for comparable equipment. Confirm the actual configuration with KANGYE.
Mold and equipment customization support
We support customized mold and equipment solutions based on your sample garments, patterns and production process. Final fit and scope are confirmed through sample trials and technical discussion.
Pressing area
Seat seamDiscuss the mold fit
Share your sample garment and pressing requirements. We can review how the mold fits before discussing a custom mold.
